473-1590: FILTER GROUP-OIL, 4731590

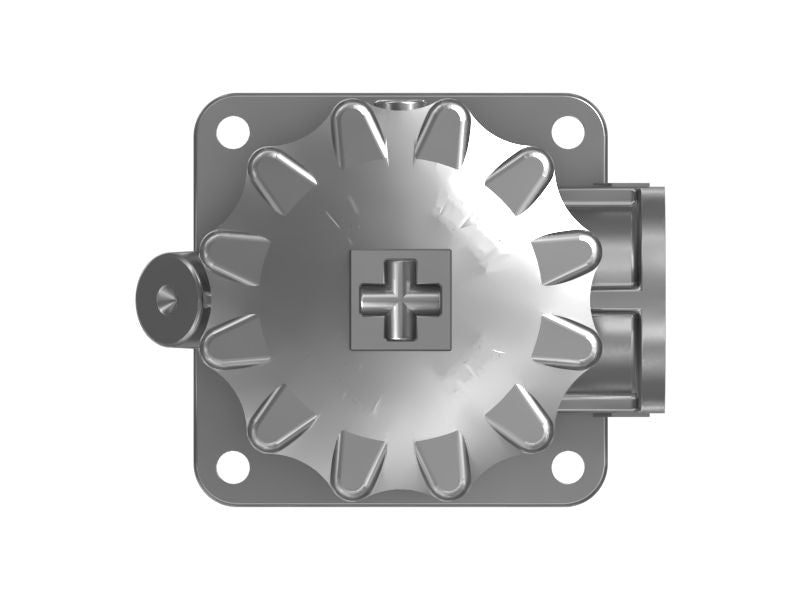

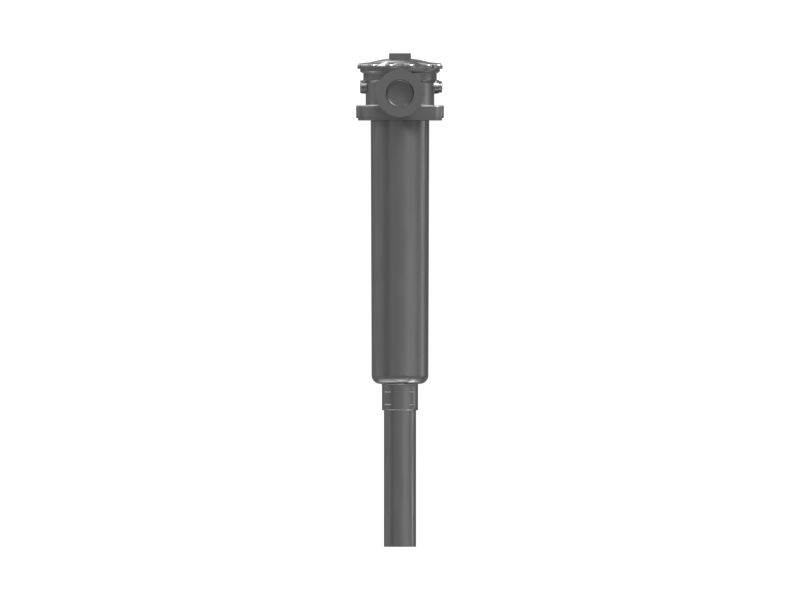

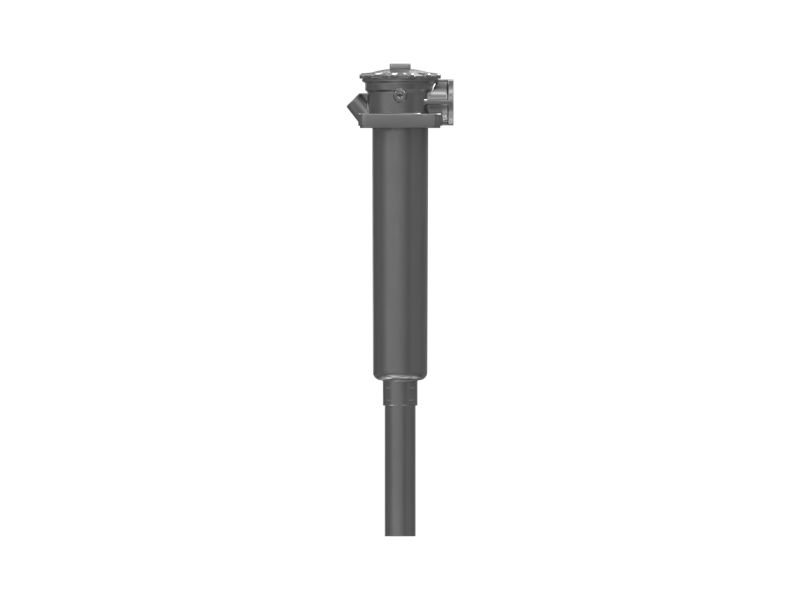

Cat® Oil Filter Group (Hydraulic)

Description:

Cat hydraulic oil filter groups are designed to meet the needs of heavy duty equipment by providing superior protection against contaminants in hydraulic oil systems.

Attributes:

• Max Working Pressure: 10 bar (145 PSI)
• Bypass Pressure: 3 bar (43.5 PSI)
• Flow Capacity: 195 L/min (51.5 gal/min)
• Inlet Port: 1-5/16-12 UNF SAE-16 ORB
• 4-bolt mounting (M8 hardware)

Application:

Used in hydraulic tanks of Cat heavy duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.

Specifications:

• Thread Size (in): 1-5/16-12
• Overall Length (in): 24.7
• Overall Width (in): 5.5
• Overall Height (in): 4.3
